This kit comes with all the parts you need to put together a fully functional fixture table. Add extras to make your life easier. Like adding the clamps already welded with threaded studs. Or order the fences pre bent. All construction is 1/4” HRPO steel.

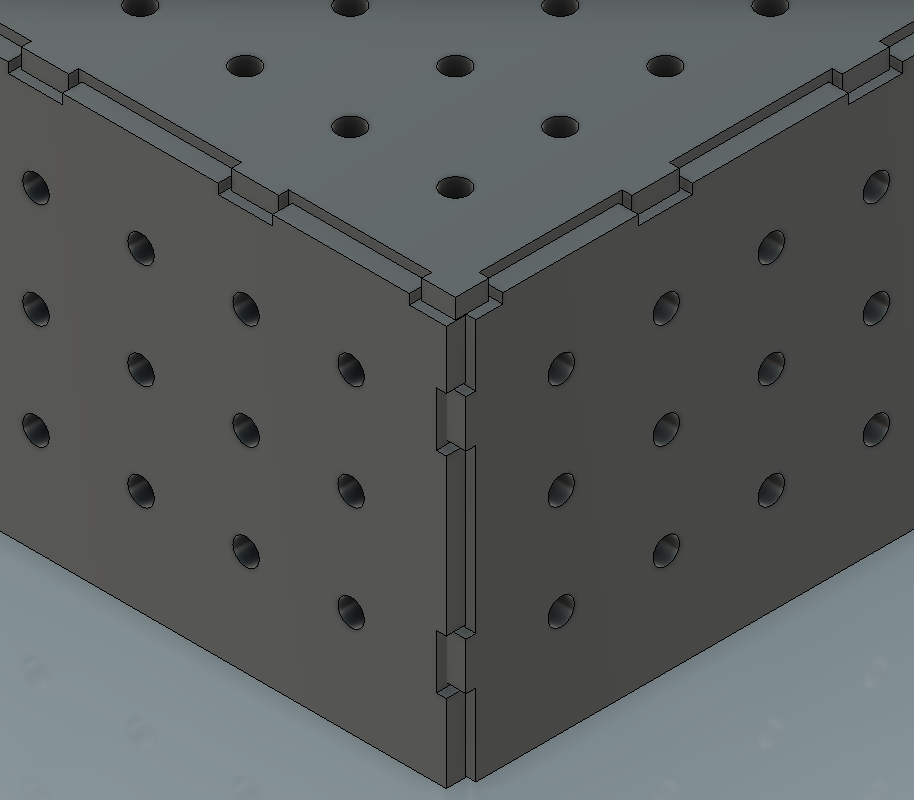

This design is simple and easy to build. Modular 2x4 foot design with 1/2 inch holes at 2 inch spacing. This kit comes with internal ribs and four sides. Standard 1/2-13 nuts on the holes for attachments (optional). All our clamps will jam just like the other fixture table designs out there.

The nuts can be held on to the bottom of the table with two small tack welds. If the threads fail you can nock off the nut and tack on a fresh one.

Comes with!

• 1 x Table (2’x4’)

• 2 x 4 inch upright

• 2 x 8 inch upright

• 2x 12 inch upright

• 4 x Double slot .25” fence

• 4 x Double slot 1” fence

• 4 x Double slot 2” fence

• 4 x Single slot .25” fence

• 4 x Single slot 1” fence

• 4 x Single slot 2” fence

• 4 x V grove fence flat

• 4 x V grove fence 90 degree

• Nuts are included

• Shipping and Freight included

Add pre welded clamps kit to get up and running faster!
